New Nikon L Plan EPI CR 100x0.85 ∞/0-0.7 OFN25 MUE35900 Objective
CFI Plan EPI 100x CRA , MUE35900
The CFI L Plan EPI CR series employs a correction system to cope with the thinner coverglass for FDP and the increased integration and mounting density of devices.
Magnification: 100x
Numerical Aperture (NA): 0.85
Design Type (L Plan): Plan (Flat-Field) and Long Working Distance
Illumination Method (EPI): Designed for Epi-illumination (Reflected Light).
Working Distance (WD): 0.85
Correction Feature: Includes a Correction Collar with an approximate range of 0-0.7
M25 Thread
In new condition.
Nikon L Plan SLWD 100x0.70 EPI ∞/0 OFN25 WD 6.5 MUE30901
Magnification / NA: 100x0.70
Part NO.:MUE30901
Series:L Plan SLWD
Optical System:Infinity Corrected (∞)
Correction (Thickness):0 mm
Working Distance (WD):6.5 mm
Thread:M25
In like new condition
Nikon L Plan EPI 1x0.03 OFN25 WD 3.8 MUE10010 Objective
Used, in good optical condition.
Item NO.:MUE10010
For Nikon Eclipse Microscopes
M25 thread
WD:3.8mm
Nikon CFI S Plan Fluor ELWD 40x0.60 ∞/0-2 WD 3.6-2.8 MRH08430
Nearly new ,in good optical condition.
For Nikon Eclipse Microscopes
M25 Thread
Transmittance curve:
Nikon S Plan Fluor ELWD 40x0.60 Ph2 ADM ∞/0-2 WD 3.6-2.8 Objective
Used, in good optical condition.
PRODUCT IDENTIFICATION
--------------------------------------------------------------------------------
Model: CFI S Plan Fluor ELWD ADM 40XC
Material / Part Number: MRH48430
Manufacturer: Nikon
Class / Series: CFI60 Infinite Optical System
KEY SPECIFICATIONS
--------------------------------------------------------------------------------
Magnification: 40X
Numerical Aperture (NA): 0.60
Working Distance (WD): 3.6 – 2.8 mm (Adjustable via Correction Collar)
Cover Glass / Vessel: 0 – 2.0 mm (Correction Ring Range)
Immersion Medium: Air (Dry)
Primary Technique: Apodized Phase Contrast (ADM)
Objective Type: Super Plan Fluor (Semi-Apochromat)
OPTICAL & DESIGN FEATURES
--------------------------------------------------------------------------------
1. Super Plan Fluor Optical Class:
- Exceptionally high optical transmission from UV to Near-Infrared (NIR) spectrum.
- Ultra-low autofluorescence background, ideal for high-sensitivity fluorescence.
- Excellent field flatness across the entire field of view (FOV).
2. Apodized Phase Contrast (ADM):
- Employs an advanced apodized phase ring design with an absorption gradient.
- Significantly suppresses the optical "halo effect" inherent to standard phase contrast.
- Delivers enhanced visual clarity, sharper edge resolution, and superior contrast
for cell boundaries and internal organelle microstructures.
3. Extra Long Working Distance (ELWD) & Correction Collar (0–2.0 mm):
- Long clearance (2.8–3.6 mm) allows seamless focus through plastic culture vessels,
multi-well microplates (24/96-well), and Petri dishes.
- Built-in precision correction collar actively compensates for spherical aberration
caused by varied bottom thicknesses (0 mm to 2.0 mm).
TYPICAL APPLICATIONS
--------------------------------------------------------------------------------
- Unstained Live Cell Observation & Morphological Screening
- Microplate & Dish-Based Cell Culture Inspection
- Combined Apodized Phase Contrast and Multi-Color Fluorescence Imaging
- Thick Specimen & Tissue Culture Studies

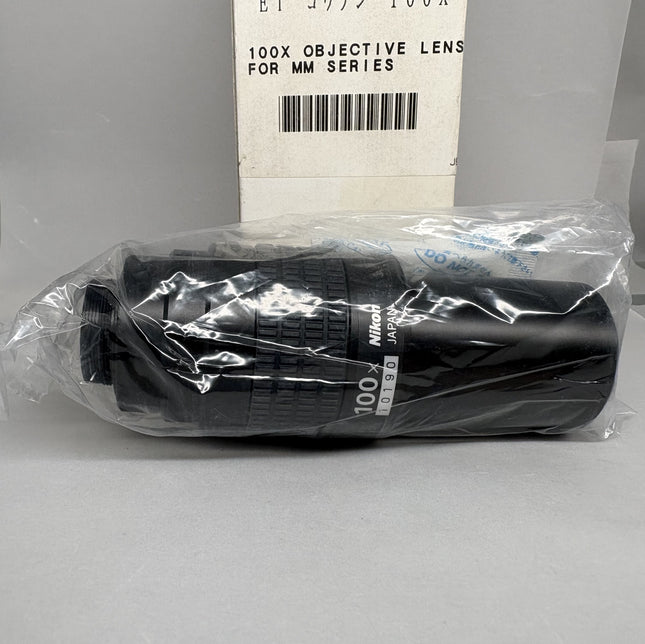

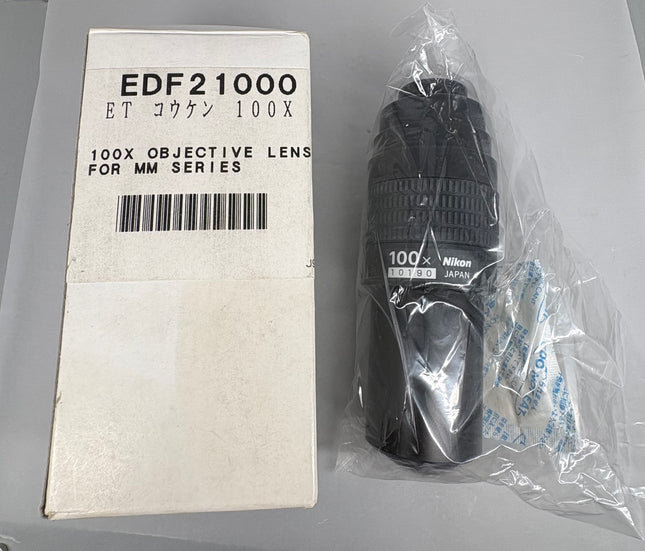

Nikon EDF21000 100x Measuring Objective Lens for TM MM Microscope (NOS)
Condition: New Old Stock (NOS) / Unused in Original Box
Brand: Nikon
Part Number: EDF21000
Magnification: 100x
Compatibility: Nikon MM Series Measuring Microscopes (MM-400, MM-800, etc.)
Up for sale is a original Nikon 100x Objective Lens (Part No. EDF21000) designed specifically for the Nikon MM Series Measuring Microscopes.
This high-magnification optical unit is crafted for high-precision industrial inspection, micro-measurement, semiconductor analysis, and quality control applications. It features Nikon’s renowned optical quality, delivering sharp contrast, high resolution, and accurate chromatic correction for critical measurements.
Important Note Regarding Packaging & Desiccant: The objective lens is currently sealed in its original factory protective plastic bag with a desiccant pack inside. Due to international carrier safety regulations prohibiting desiccants in air freight shipments, we will need to carefully open the sealed inner plastic bag to remove the desiccant prior to dispatch.
Please rest assured that the lens itself remains in 100% brand-new, unused condition and will be re-packed securely with clean protective materials to ensure safe transit.
Nikon Objectives: High-Precision Optics at Unbeatable Pre-Owned Value
Step into the world of Nikon’s renowned optical excellence. Nikon microscope objectives, built upon the innovative CFI60 infinity optics standard, deliver breathtaking clarity, exceptional flatness of field, and superior contrast across the entire spectrum, from routine lab tasks to cutting-edge research.
【Why Choose Pre-Owned Nikon from Chengtu Optics? Unlocking Value】
While we maintain a limited stock of new (NOS) Nikon objectives, the majority of our inventory consists of high-quality pre-owned Nikon optics. For researchers, labs, and enthusiasts, this presents a monumental advantage:
Achieve World-Class Performance for a Fraction of the Cost. New Nikon objectives represent a significant capital investment. Our rigorously tested used inventory allows you to equip your microscope with premium optics like Plan Apochromats and specialized industrial models at a fraction of the original price, ensuring your research budget goes further without compromising image quality.
【A Comprehensive Inventory of Nikon Excellence】
Our stock is specialized and comprehensive, ensuring you find the right lens for any application. We offer a wide range of magnification and aperture options, including the acclaimed CFI Plan Apochromats (Plan Apo), CFI Plan Fluor, and CFI Achromats—covering both CFI60 infinity-corrected (∞) and older Finite Correction (160) models.
We place a strong emphasis on providing solutions for advanced inspection:
Industrial & Metallurgical Optics : We frequently stock the specialized industrial series such as LU Plan and TU Plan objectives. These are designed for reflected light use in materials science, failure analysis, and electronics inspection.
Long Working Distance Advantage: A key feature of our inventory is the availability of numerous Long Working Distance (LWD/ELWD) objectives. These lenses are essential for working with thick samples, slides with deep wells, or when using specialized equipment like manipulators, ensuring ample clearance between the lens and the specimen.
Contrast Techniques: Find objectives optimized for Phase Contrast (PH) and DIC techniques, crucial for high-contrast imaging of unstained or transparent biological specimens.
【Quality Assurance & Compatibility】
Every pre-owned Nikon objective is subjected to our multi-point quality control inspection. Our professional engineers meticulously verify the cleanliness of the internal glass, mechanical functionality (e.g., spring-loading and correction collars), and overall imaging performance. We guarantee functional integrity and meticulously detail any cosmetic wear, allowing you to buy with complete confidence.
Browse our Nikon objectives today and redefine what’s possible within your budget.
