Description

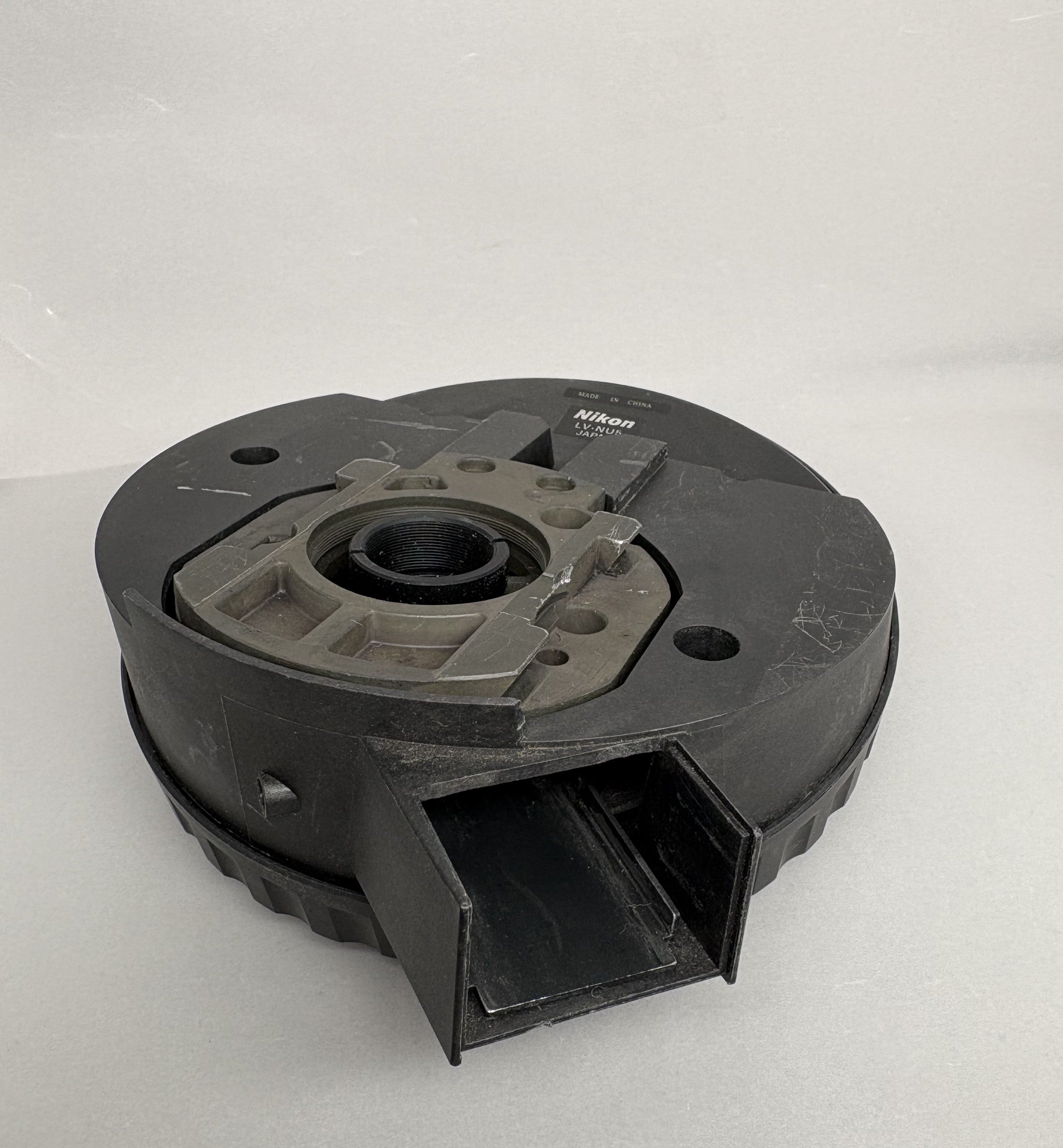

Nikon LV-NU5 Quintuple Revolving Nosepiece with DIC Slot BD M32 thread
Key Advantage over the standard L-NBD5: While both models accommodate 5 positions of M32-thread BD objectives, the LV-NU5 features a dedicated side DIC slider slot (with a sliding dust cover). Unlike the basic L-NBD5—which is limited strictly to standard Brightfield/Darkfield (BD) observation—the LV-NU5 enables full Differential Interference Contrast (DIC) observation simply by inserting a compatible DIC prism slider
Key Specifications:
-
Model: LV-NU5
-
Capacity: 5 Objective Positions (Quintuple)
-
Thread Type: M32 × 0.75 (accepts CFI60 LU Plan BD, TU Plan BD, and other large-barrel BD objectives)
-
Optical Capability: Brightfield, Darkfield, and DIC (equipped with dedicated DIC prism slot)
-
Compatibility:
-
Nikon Eclipse LV100D, LV150, LV150A series
-
Nikon Eclipse L200, L300 series semiconductor inspection microscopes
-
Nikon LV-FM / LV-FS modular industrial focus blocks
Condition: Pre-owned in fully working condition. Mechanical rotation is smooth with crisp detent click-stops across all 5 positions. The M32 threads are clean and intact. The DIC slot cover slides smoothly. Cosmetic wear includes minor surface scuffs on the housing from prior mounting/use, which do not affect optical alignment or mechanical performance.
