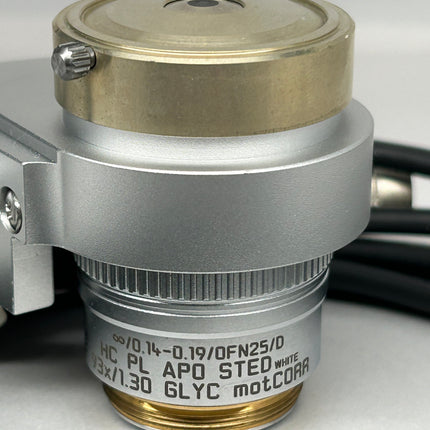

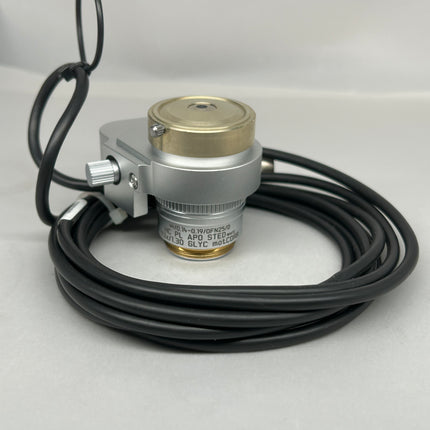

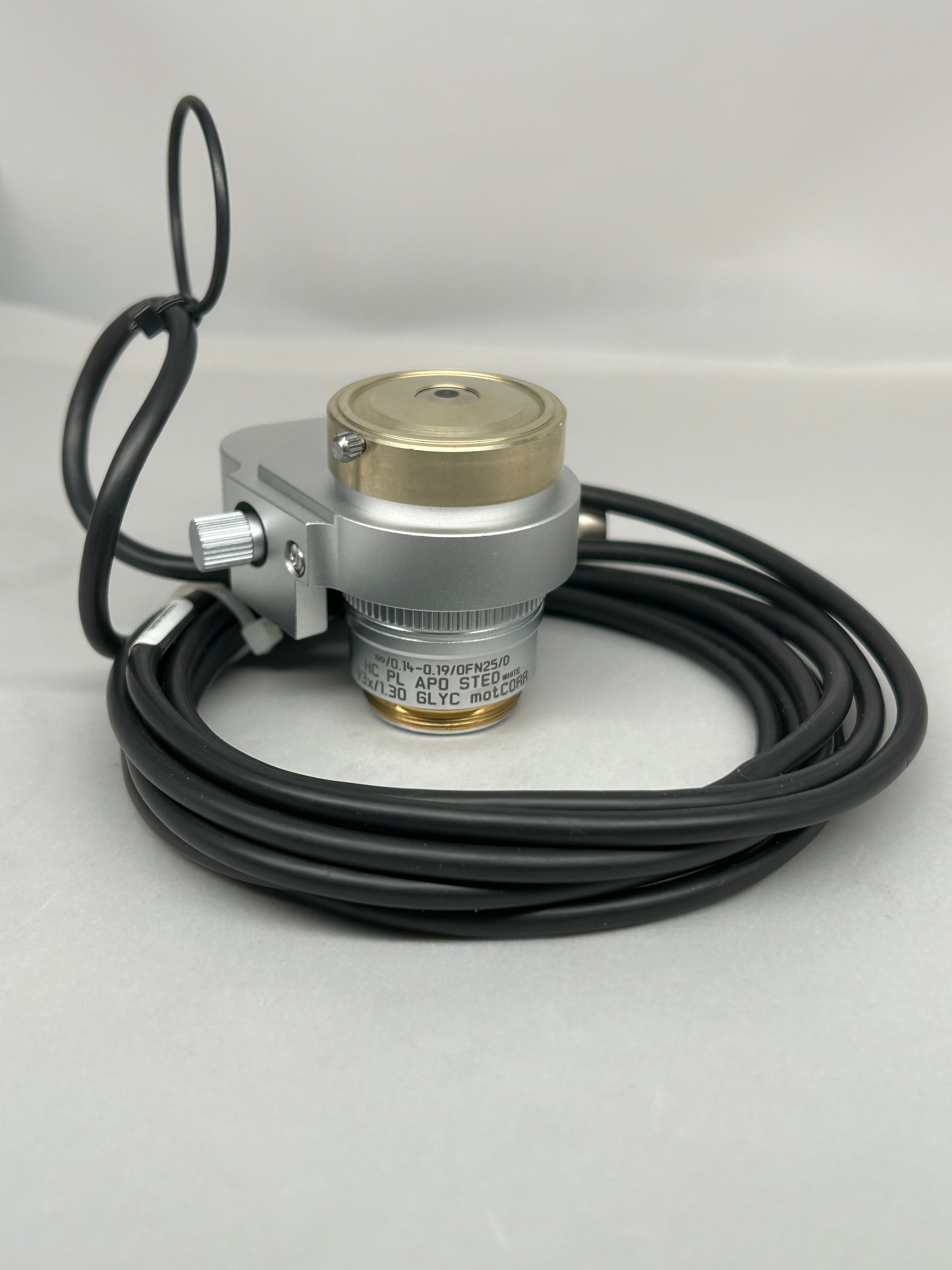

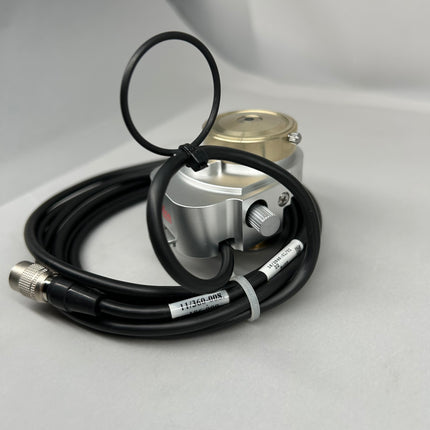

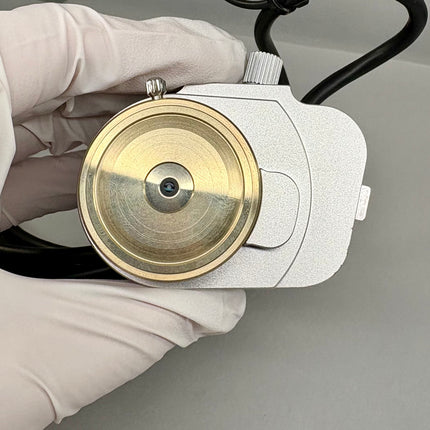

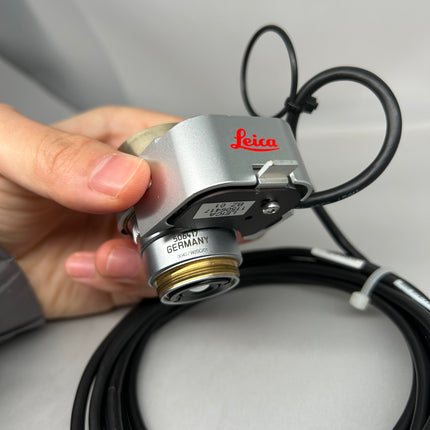

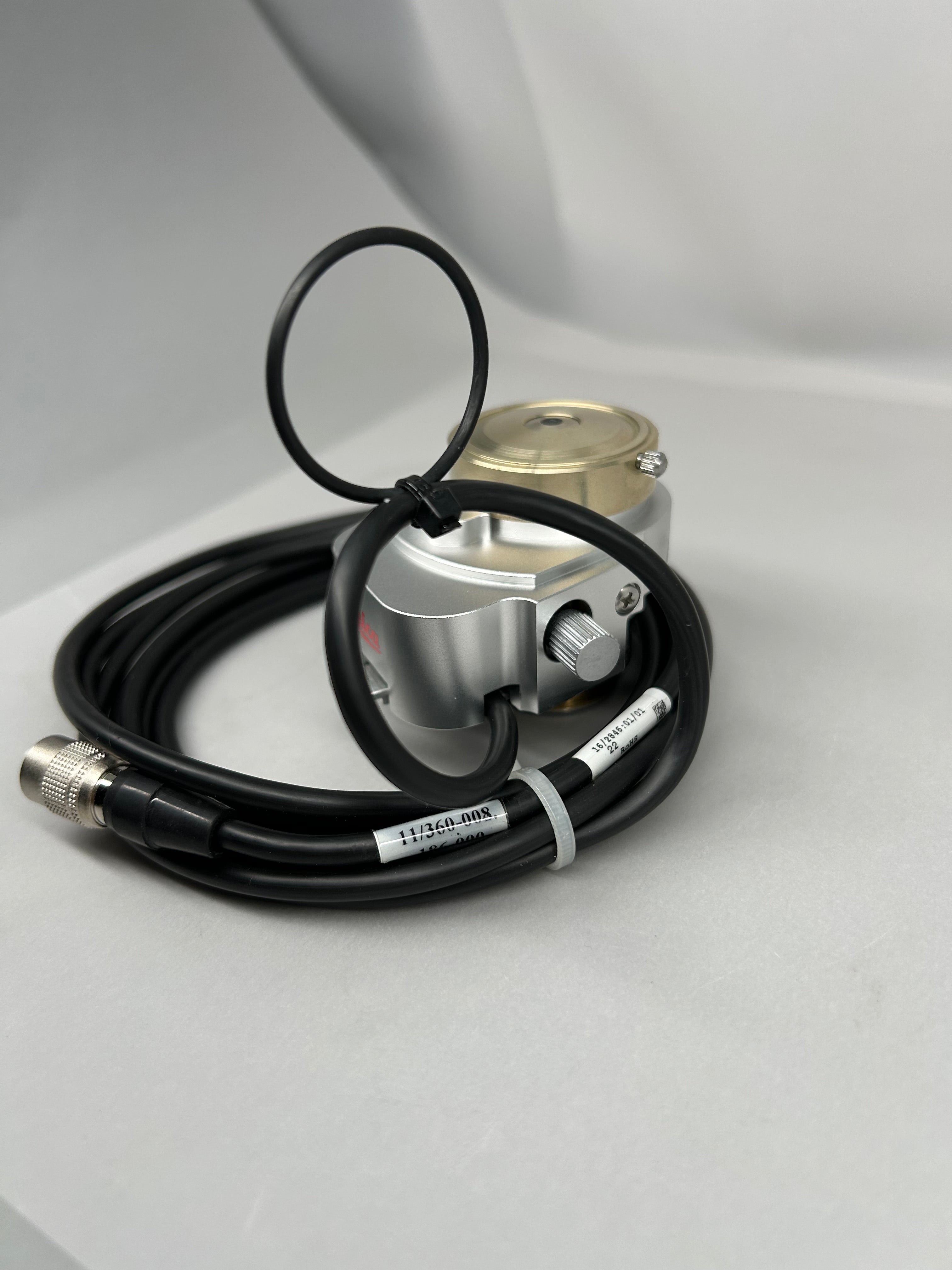

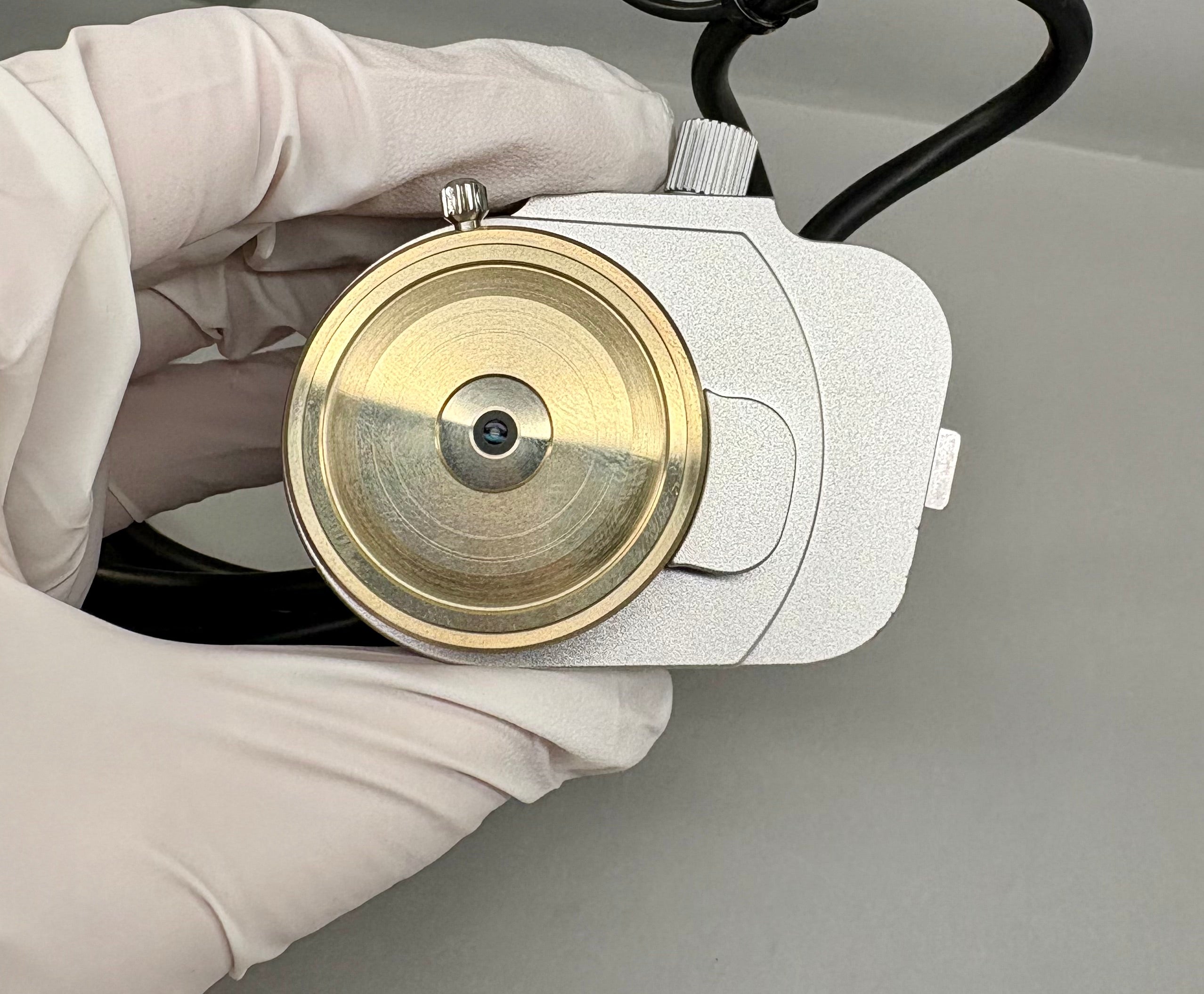

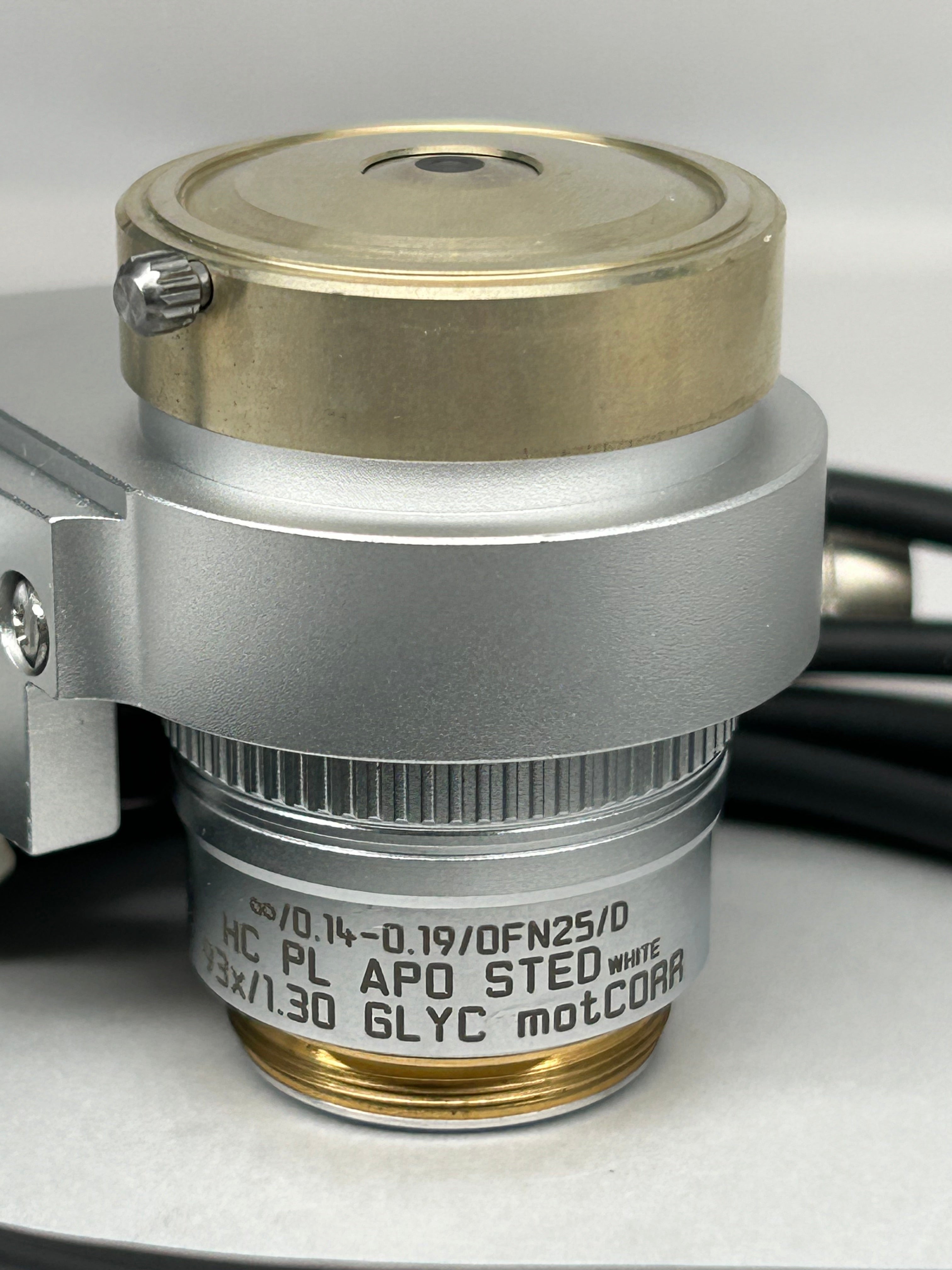

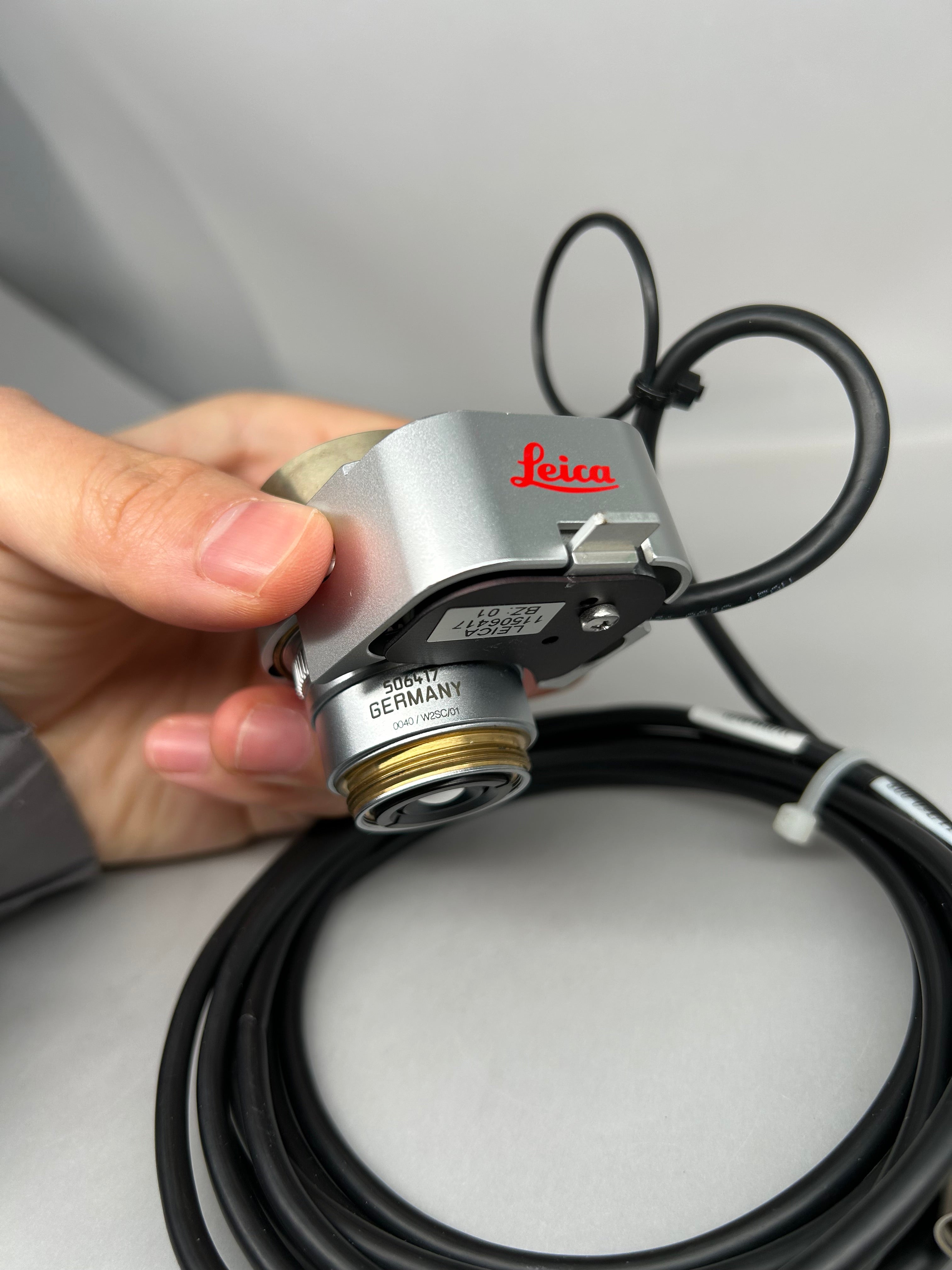

Leica Objective HC PL APO 93x/1,30 GLYC motCORR STED WHITE 506417 microscope objective

Description

Leica Objective HC PL APO 93x/1,30 GLYC motCORR STED WHITE 506417

Used,in good optical condition

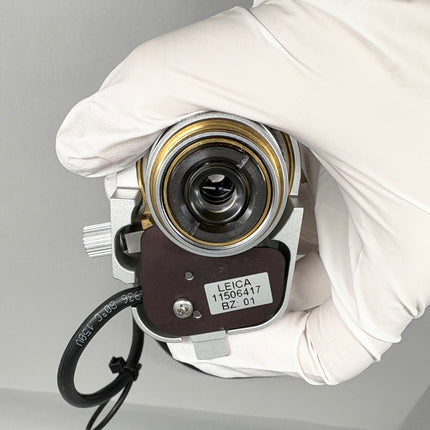

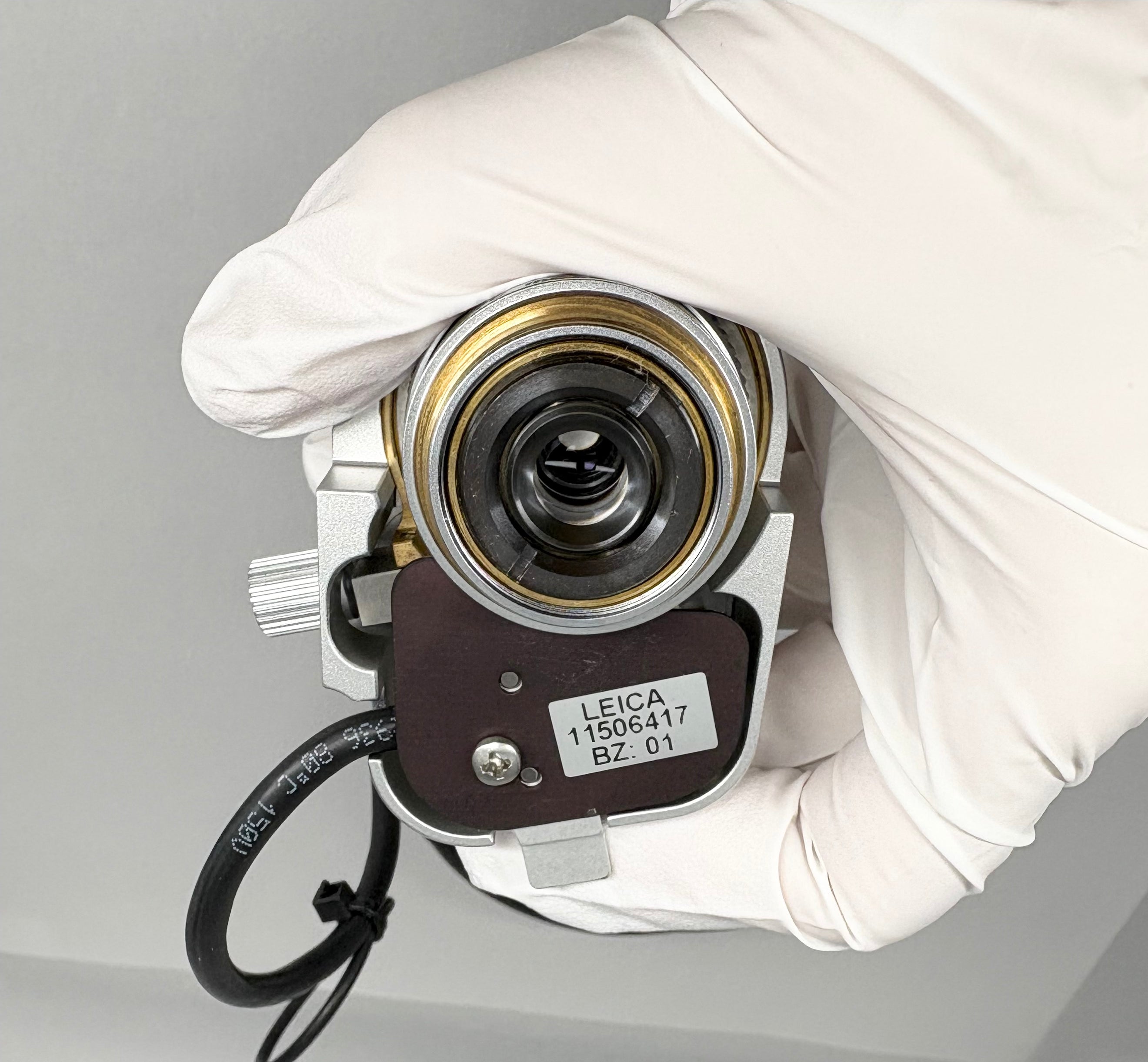

Product Number  :  11506417
Correction Ring (CORR)   : motCORR
Coverglass  :  With
Exit Pupil Position/DIC prism  :  -
Field Number (FN) :   25
Free Working Distance (WD in mm)  :  0.3
Immersion   : GLYC
Iris Diaphragm  :  Without
Magnification  :  93⨉
Contrasting Methodes  :  TL-BF, TL-DIC, FLUO
Numerical Aperture  :  1.3
Objective Thread   : M25
Objective Type  :  PLAN APO
Spring Loaded  :  Yes
Suitable for AFC (Adaptive Focus Control)   : AFC suitable
Techniques  :  CS2, MotCorr, STED

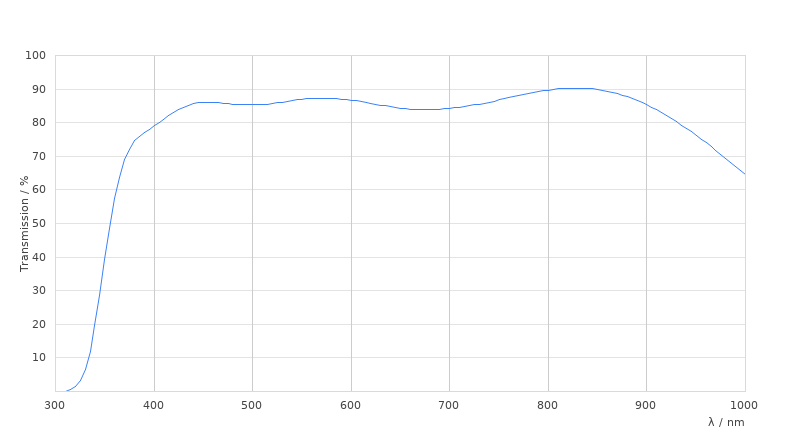

Transmission   : UV (340nm)

Leica Objective HC PL APO 93x/1,30 GLYC motCORR STED WHITE 506417 has a magnification of 93X and a numerical aperture of 1.3. For use in glycerol immersion material environment and attached with an objective thread of M25 having a free working distance of 0.3mm and a FN of 25.

Leica Objective HC PL APO 93x/1,30 GLYC motCORR STED WHITE 506417 microscope objective

Product form

Leica Objective HC PL APO 93x/1,30 GLYC motCORR STED WHITE 506417 Used,in good optical condition Product Number  :  11506417Correction Ring... Read more

5-7 days

$26,702.00 $8,250.00

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 19, 2026 23:59:00 -0400

    Description

    Leica Objective HC PL APO 93x/1,30 GLYC motCORR STED WHITE 506417

    Used,in good optical condition

    Product Number  :  11506417
    Correction Ring (CORR)   : motCORR
    Coverglass  :  With
    Exit Pupil Position/DIC prism  :  -
    Field Number (FN) :   25
    Free Working Distance (WD in mm)  :  0.3
    Immersion   : GLYC
    Iris Diaphragm  :  Without
    Magnification  :  93⨉
    Contrasting Methodes  :  TL-BF, TL-DIC, FLUO
    Numerical Aperture  :  1.3
    Objective Thread   : M25
    Objective Type  :  PLAN APO
    Spring Loaded  :  Yes
    Suitable for AFC (Adaptive Focus Control)   : AFC suitable
    Techniques  :  CS2, MotCorr, STED
    Transmission   : UV (340nm)

    Leica Objective HC PL APO 93x/1,30 GLYC motCORR STED WHITE 506417 has a magnification of 93X and a numerical aperture of 1.3. For use in glycerol immersion material environment and attached with an objective thread of M25 having a free working distance of 0.3mm and a FN of 25.

    When will my order be delivered?

    We ship worldwide by FedEx . Your order will be packaged really carefully. Delivery takes between 5-7 business days.

    Can I return my product?


    Except for product quality issues or discrepancies from the description, we generally do not accept returns.

     Items purchased incorrectly or that are incompatible are not covered under our service guarantee.
