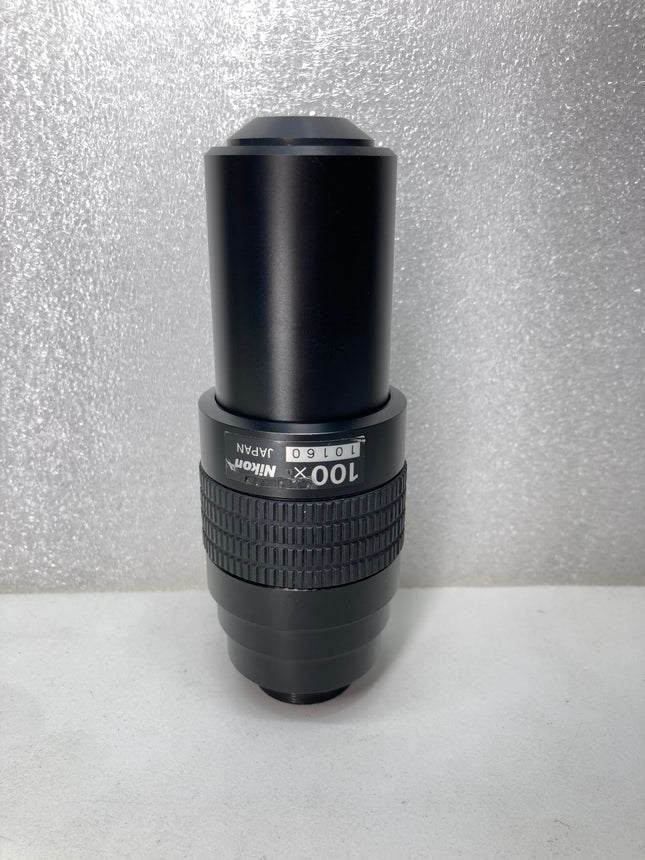

Brand/Model: Nikon TM MM 100X Measuring Toolmaker Objective
Type: Measuring / Toolmaker Microscope Objective
Magnification: 100X
Used ,in good optical condition and fully working condition.
Compatible with Nikon MM-Series Microscopes.
[PRODUCT OVERVIEW]
The Nikon EDF21000 TM 100x is a premium, high-magnification measuring microscope objective lens engineered specifically for industrial metrology, precision tooling inspection, and semiconductor QA/QC workflows. Unlike standard inspection objectives, the TM series is built as an optical ruler, delivering unparalleled dimensional accuracy for critical micro-measurements.
[KEY PERFORMANCE FEATURES]
* Object-Space Telecentric Design
Features a strict telecentric optical layout where principal rays remain perfectly parallel to the optical axis. This eliminates perspective errors ("near-large, far-small" effects) and ensures that magnification remains completely constant, even when the specimen surface has height steps or slight defocusing.
* Zero-Distortion for Metrology
Optimized for geometric purity. The edge-to-edge distortion is minimized to near-zero levels, allowing manual or automated measurement software (edge detection) to capture accurate X/Y dimensions consistently across the entire field of view.
* Pure Dry High-Magnification (Non-Oil)
Engineered as a high-resolution, pure Dry objective. Eliminates the risk of oil or water contamination on delicate parts, making it safe and efficient for inspecting cleanroom semiconductor wafers, precision optical components, and finished machined parts.
* Exceptional Planarity & Sharp Contrast
Delivers a flat field of view (Plan) with highly corrected chromatic and spherical aberrations. Specially coated to prevent internal glare and ghosting under vertical coaxial episcopic illumination, providing razor-sharp contrast on highly reflective metallic surfaces.
* Industrial Standard Compatibility
Designed for legacy industrial measuring systems (such as the classic Nikon MM series toolmakers' microscopes), utilizing a robust mechanical barrel and standard industrial mounting threads to ensure rigid, vibration-free integration.
[IDEAL APPLICATIONS]
* Toolmakers' Microscopes & Video Measuring Systems (VMM)
* Semiconductor Wafer Inspection & Critical Dimension (CD) Measurement
* Precision Micro-Machining & Geometry Verification
* Automated Machine Vision Edge-Detection Systems[TECHNICAL SPECIFICATIONS]
- Magnification: 100x
- Focal Length: 2.15 mm
- Numerical Aperture (NA): 0.75
- Working Distance (WD): 4.1 mm
- Depth of Focus (DOF): 0.5 um
- Parfocal Distance: 126 mm
- Mounting Thread: M26 x 0.75
- Max Barrel Outer Diameter: 47 mm
- Front Sleeve Diameter: 38 mm
- Total Physical Length: 129.4 mm
- Net Weight: 550 g
[DIMENSIONS & MECHANICAL INTEGRATION]
- Thread Type: Standard industrial M26 x 0.75 metric thread for rigid, vibration-free toolmaker microscope setups.
- Shoulder-to-Tip Length: 126 mm, perfectly matched with the rest of the TM series lineup for effortless parfocal switching.
- Total Length (Including Thread Section): 129.4 mm.
- Front Section Clearance: Slim 38 mm lower barrel design provides optimized approach clearance around complex components and custom fixtures.

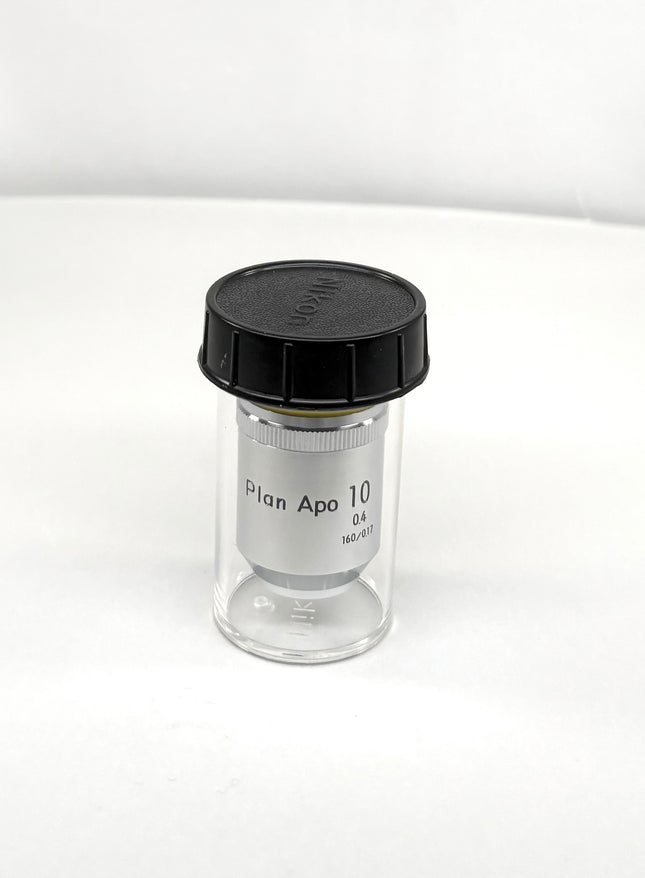

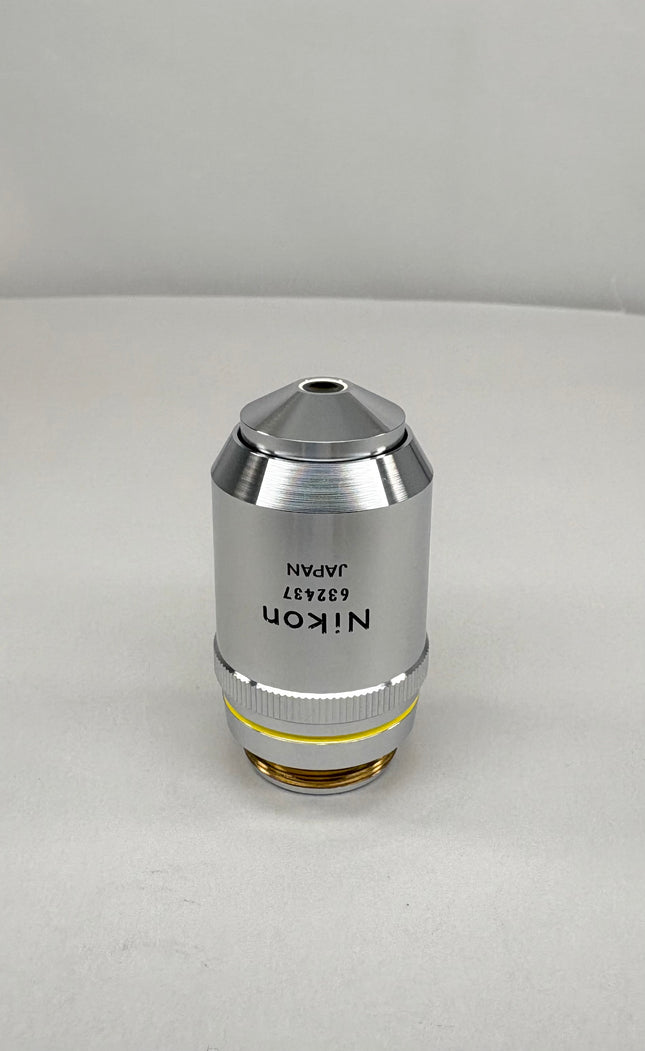

Nikon Plan APO 10x0.4 160/0.17 RMS Objective new
Brand/Model: Nikon Plan APO 10x0.4 160/0.17 RMS Objective
Magnification: 10X
Numerical Aperture (NA): 0.40
Optical System: Finite (160 mm mechanical tube length)
Cover Glass Correction: 0.17 mm
Mount: RMS
Immersion: Dry
Condition: New old stock.

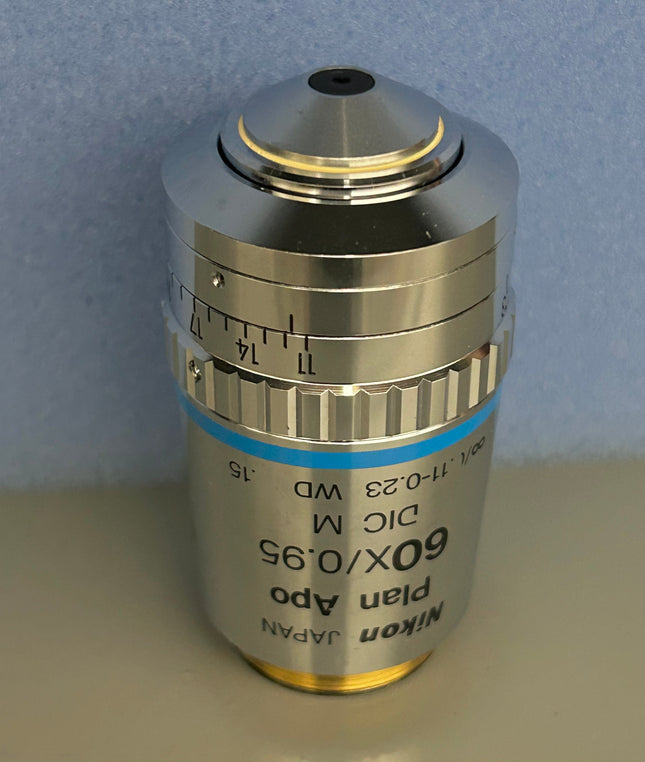

This is a used Nikon Plan Apo 60X objective lens in excellent optical condition with clean glass
Type: Plan Apo
Magnification: 60X.
Numerical Aperture (N.A.): 0.95.
System: Infinity-corrected (∞).
Cover Glass Thickness: 0.11-0.23
M25 thread.
Nikon Objectives: High-Precision Optics at Unbeatable Pre-Owned Value
Step into the world of Nikon’s renowned optical excellence. Nikon microscope objectives, built upon the innovative CFI60 infinity optics standard, deliver breathtaking clarity, exceptional flatness of field, and superior contrast across the entire spectrum, from routine lab tasks to cutting-edge research.
【Why Choose Pre-Owned Nikon from Chengtu Optics? Unlocking Value】
While we maintain a limited stock of new (NOS) Nikon objectives, the majority of our inventory consists of high-quality pre-owned Nikon optics. For researchers, labs, and enthusiasts, this presents a monumental advantage:
Achieve World-Class Performance for a Fraction of the Cost. New Nikon objectives represent a significant capital investment. Our rigorously tested used inventory allows you to equip your microscope with premium optics like Plan Apochromats and specialized industrial models at a fraction of the original price, ensuring your research budget goes further without compromising image quality.
【A Comprehensive Inventory of Nikon Excellence】
Our stock is specialized and comprehensive, ensuring you find the right lens for any application. We offer a wide range of magnification and aperture options, including the acclaimed CFI Plan Apochromats (Plan Apo), CFI Plan Fluor, and CFI Achromats—covering both CFI60 infinity-corrected (∞) and older Finite Correction (160) models.
We place a strong emphasis on providing solutions for advanced inspection:
Industrial & Metallurgical Optics : We frequently stock the specialized industrial series such as LU Plan and TU Plan objectives. These are designed for reflected light use in materials science, failure analysis, and electronics inspection.
Long Working Distance Advantage: A key feature of our inventory is the availability of numerous Long Working Distance (LWD/ELWD) objectives. These lenses are essential for working with thick samples, slides with deep wells, or when using specialized equipment like manipulators, ensuring ample clearance between the lens and the specimen.
Contrast Techniques: Find objectives optimized for Phase Contrast (PH) and DIC techniques, crucial for high-contrast imaging of unstained or transparent biological specimens.
【Quality Assurance & Compatibility】
Every pre-owned Nikon objective is subjected to our multi-point quality control inspection. Our professional engineers meticulously verify the cleanliness of the internal glass, mechanical functionality (e.g., spring-loading and correction collars), and overall imaging performance. We guarantee functional integrity and meticulously detail any cosmetic wear, allowing you to buy with complete confidence.
Browse our Nikon objectives today and redefine what’s possible within your budget.
