Zeiss 6-position nosepiece, 5x H/Pol, 1x H/DIC M27 for Axioscope 5/7
Used, in good working condition.
Item no.:424515-1001-810
6-position nosepiece / turret.
It fits for Zeiss Axioscope 5/7 POL Polarizing Microscopes.
Zeiss Attachable object guide Pol,28x48 mm 453561-9901 f/ rotary Pol Axioscope Microscope
Never used, in pristine condition.
Dimensions: 28x48 mm
Part Number: 453561-9901
Compatible with: Zeiss Axioscope microscopes with rotary polarizer
Application: Polarization microscopy, material analysis, crystallography
Condition: New, unused
Manufacturer: Carl Zeiss
This attachable object guide is an essential component for polarization microscopy applications, providing precise control and positioning for polarized light analysis.

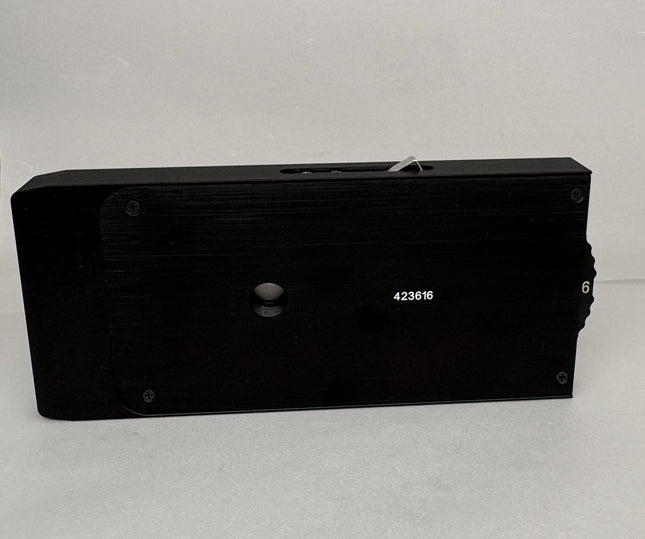

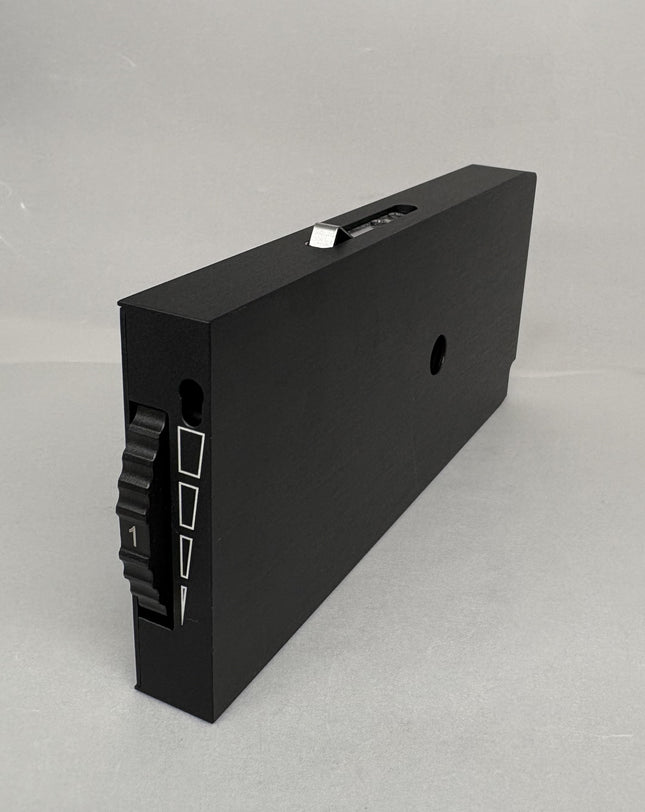

Zeiss Discrete Fluorescence Attenuator Slider 423616-0000-000 for Axio Imager / LSM Series
Condition: Unused (Mint physical and optical condition).
Precise 6-Position Discrete Attenuation:
Position 1: 100% Transmission (Clear Aperture)
Position 2: 70% Transmission
Position 3: 50% Transmission
Position 4: 40% Transmission
Position 5: 20% Transmission
Position 6: 2% Transmission
Seamless Integration: Direct slider-type insert designed specifically for the aperture stop plane of Zeiss reflected-light illuminators.
Sample Protection: Essential for reducing excitation power on sensitive fluorophores to prevent rapid photobleaching and phototoxicity.
Compatible Zeiss Microscope Systems
This attenuation slider is fully compatible with the following Zeiss research microscope models and illuminators:
Axio Imager Series:
Axio Imager.D1 / Axio Imager.D1 with ApoTome
Axio Imager.D2 / Axio Imager.D2m
Axio Imager.Z1 / Axio Imager.Z1 + ApoTome
Axio Imager.Z2 / Axio Imager.Z2m
Axio Imager.A2 / Axio Imager.A2m
Axio Imager.M2 / Axio Imager.M2m
Confocal Systems:
Zeiss LSM 990
Zeiss EC Epiplan NEOFLUAR 1.25x0.03 M27 422310-9900 Objective
Used, in good optical condition.
This objective lens is suitable for both transmitted and reflected light.
Free working distance: 4.0mm
This is a series of objectives for the examination of materials. They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and like all EC objectives they are optimized for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters up to 20 mm. EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with an objective magnification above 20x. There are no restrictions for uncovered specimens. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and of course like all EC objectives for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters of 20 mm.EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with objective powers above 20x.There are no restrictions for uncovered specimens.
Zeiss EC Epiplan NEOFLUAR 10x0.25 HD DIC BD M27 422342-9960 Objective
Used, in good optical condition.
Free Working Distance(mm) : 9.0
This objective lens is suitable for both transmitted and reflected light.
EC Epiplan-Neofluar
This is a series of objectives for the examination of materials. They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and like all EC objectives they are optimized for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters up to 20 mm. EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with an objective magnification above 20x. There are no restrictions for uncovered specimens. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and of course like all EC objectives for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters of 20 mm.EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with objective powers above 20x.There are no restrictions for uncovered specimens.
Zeiss EC Epiplan NEOFLUAR 2.5x0.06 HD BD 422320-9960 Objective M27
Used, in good optical condition.
This objective lens is suitable for both transmitted and reflected light.
Free working distance:15.1mm
EC Epiplan-Neofluar
This is a series of objectives for the examination of materials. They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and like all EC objectives they are optimized for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters up to 20 mm. EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with an objective magnification above 20x. There are no restrictions for uncovered specimens. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and of course like all EC objectives for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters of 20 mm.EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with objective powers above 20x.There are no restrictions for uncovered specimens.
Zeiss EC Epiplan NEOFLUAR 5x0.13 HD DIC BD 1156-514 Objective M27
Used, in good optical condition.
This objective lens is suitable for both transmitted and reflected light.
Magnification : 5x
Numerical Aperture : 0.13
Free Working Distance : 14.5[mm]
Coverglass Thickness : 0[mm]
Thread Type : M27
Used, in good optical condition.
Product Description Statement: We primarily offer a wide range of accessories for Zeiss, Leica, Nikon, Olympus ('The Big Four'), and Mitutoyo microscopes,etc. The majority of our inventory consists of pre-owned items, supplemented by a limited number of new products. Our pre-owned accessories are typically in very good condition. We strive to accurately display or describe any flaws or blemishes present.
Warranty / Quality Guarantee Statement: We provide a full quality guarantee for our merchandise. Any quality concerns regarding pre-owned items must be reported to us within one month (30 days) of receiving your order. If a dispute arises concerning an item's condition or function, we are dedicated to finding a satisfactory resolution for our customers, including options for a full refund, return for refund, or partial refund.
Shipping Policy Statement: Packages destined for the USA, Europe, and Oceania are generally shipped via FedEx Express for expedited service. We commit to dispatching all orders within 3 business days of purchase confirmation.
Zeiss Intermediate Plate for slide 12x46 425313-9020 W/452149 f/ AXIO Microscopes.
Item no.: 425313-9020-000 /452149
New open box
Intermediate plate for analyzer slider 12x46 incl. tube-lens, with slot for use of analyzer sliders from the Axio Imager line
This article is compatible with the microscope(s) listed below. Attention: The list also includes microscopes that are no longer available in the current program.
Axio Scope.A1
Axio Scope.A1 Vario
Axio Scope.A1
Axio Scope.A1 Pol
Axioscope 5 MAT
Axioscope 5 Pol
Axioscope 7
Axioscope vario
Axiolab 5
Axiolab 5 MAT
Axiolab 5 Pol
Axioscope 5
Zeiss LED illuminator for transmitted light 423904
Used, in fully working condition.
Compatible microscopes This article is compatible with the microscope(s) listed below. Attention: The list also includes microscopes that are no longer available in the current program. Axio Imager.A1 Axio Imager.A1m Axio Imager.D1 Axio Imager.D1 for epi-fluorescence with ApoTome equipment Axio Imager.D1m Axio Imager.M1 Axio Imager.M1m Axio Imager.Z1 Axio Imager.Z1m Axio Scope.A1 Axio Imager.Z1 + ApoTome Axio Imager.A2 Axio Imager.A2m Axio Imager.D2 Axio Imager.D2m Axio Imager.M2 Axio Imager.M2m Axio Imager.Z2 Axio Imager.Z2m Axio Scope.A1 Axio Scope.A1 Pol Axioscope 5 MAT Axioscope 5 Pol Axioscope 7 Axioscope vario Axioscope 5
